Metal Halide UV Lamp

Metal halide lamps are mercury vapor lamps with the addition of metal halide salts. The metal halide salts are added to create specific wavelength lines of ultraviolet radiation to match the sensitivity of the photopolymer be cured.Metal halide salts are compounds composed of metal and halide salts elements such as Iodine and Bromide within the lamp to perform halogen cycles.

The electro-negative halogens chemically react within a lamp to cause a reaction in which the metals take on a positive charge. As the internal temperature of the lamp increases to the vaporization temperature of precisely dosed metals, the positive ions being produced allow the metals to release their outer electrons causing UV radiation output at specific wavelengths.

Special ballasts are required for metal halide lamps. These ballasts have a higher open circuit voltage and special output waveform (crest-factor). This feature also extends lamp life while keeping the mercury and heavy metals within the lamp structure in a plasma state during temperature and voltage variations.

UVSMT work directly with the Lamp manufacturer and machinery OEMs, and offer Lamp manufacturer and machinery OEMs bases for Metal halide lamps.

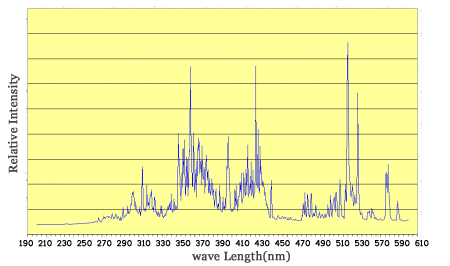

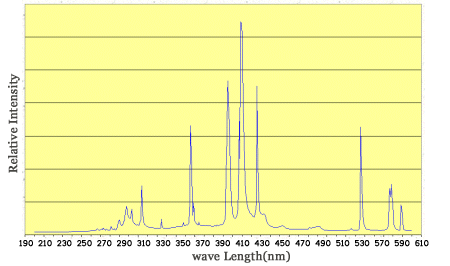

Spectral power distribution of Gallium Lamp Spectral power distribution of Iron Lamp

<Specifications of Metal Halide UV Lamp >

Cat. No	Lamp Watt(W)	Lamp(V)	Lamp(A)	Overall Length (mm)	Arc Length(mm)	Diameter(mm)
M1500/EO M3000/EO M5000/EO M6000/EO M8400/EO M9000/EO M9600/EO M12.0K/EO M13.0K/EO M15.0K/EO M16.0K/EO M17.0K/EO M20.0K/EO	1500 3000 5000 6000 8400 9000 9600 12.0K 13.0K 15.0K 16.0K 17.0K 20.0K	180 375 340 750 1070 1050 1220 1500 1300 1300 1625 1625 1950	9.4 9.0 16.0 9.0 9.3 9.5 9.3 9.0 11.1 12.8 11.6 12.3 11.4	225 400 310 650 826 900 926 1150 1200 1350 1500 1600 1700	125 250 215 500 700 750 800 1000 1100 1250 1400 1500 1600	24.5 24.5 30.0 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5

Other specifications are available upon request to help@uvsmt.com
